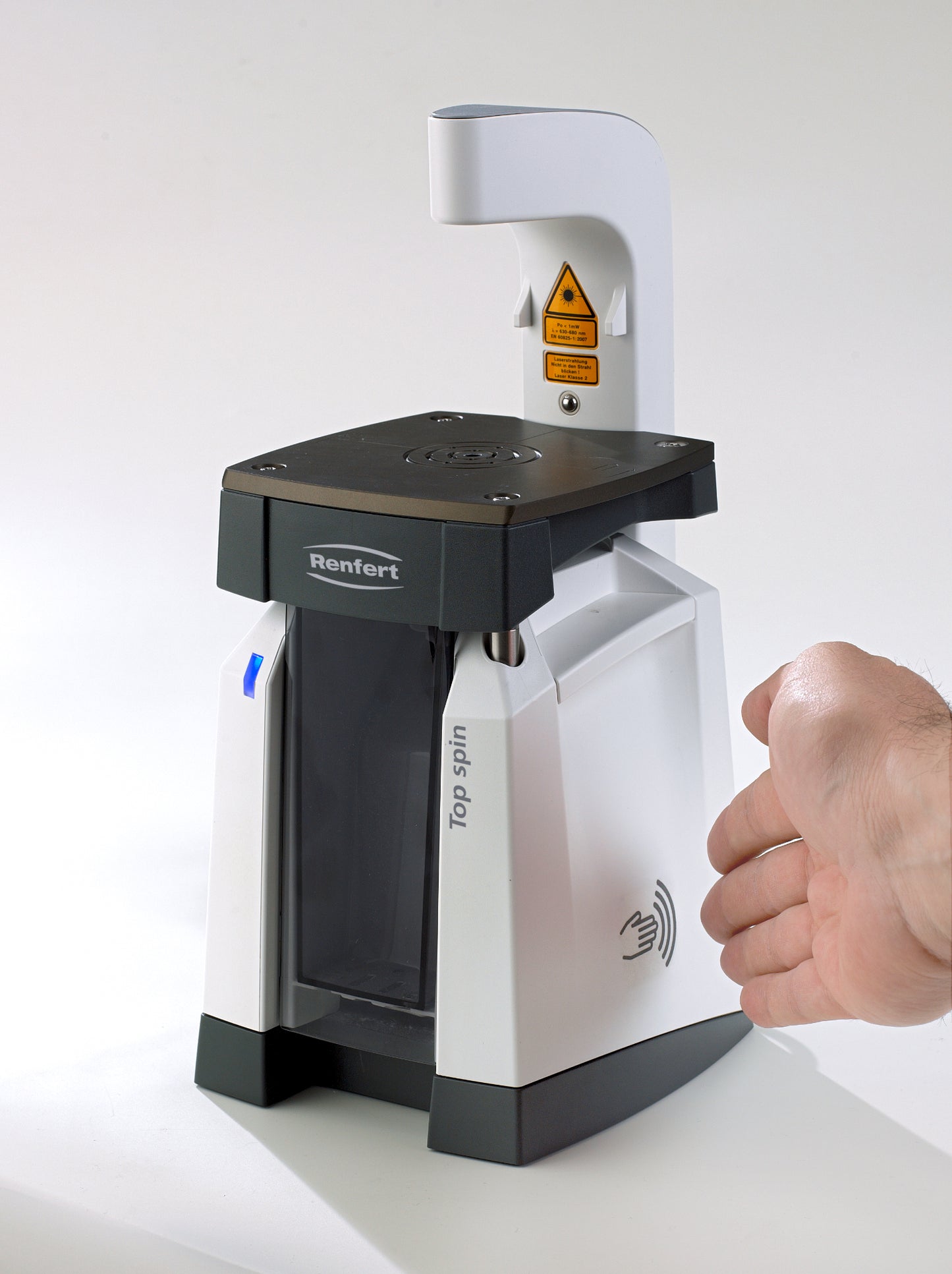

The Top spin pin drilling unit offers additional precision, safety, and durability. Its exceptional concentric precision and special drill technology make it unique.
Advantages
Drilling precision of ≤ 0.01 mm thanks to sophisticated shaft-bearing technology.
High-torque motor with no power loss when drilling (8000 rpm).
Extremely easy drilling with no resistance thanks to a special drill geometry.
Details
Two unit positions and different gripping options for fixing the dental arch in position enable an individual, ergonomic working posture.
The individual, infinitely variable drill-depth setting of 0–20 mm (0–0.79") also allows drilling for pin systems with resin plates.
With adjustment it is also possible to use drills with a longer shaft.
Compact design with a high degree of stability.
Top spin, 120-240 V
Item number 18400000
Scope of delivery: Top spin 220-240 V, 1x Stepped pin drill bit large
