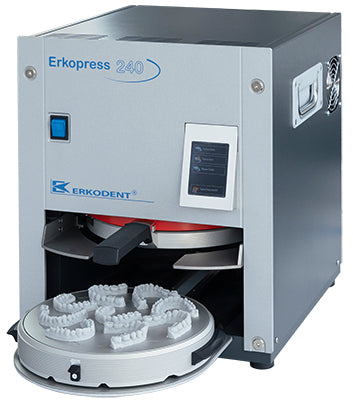

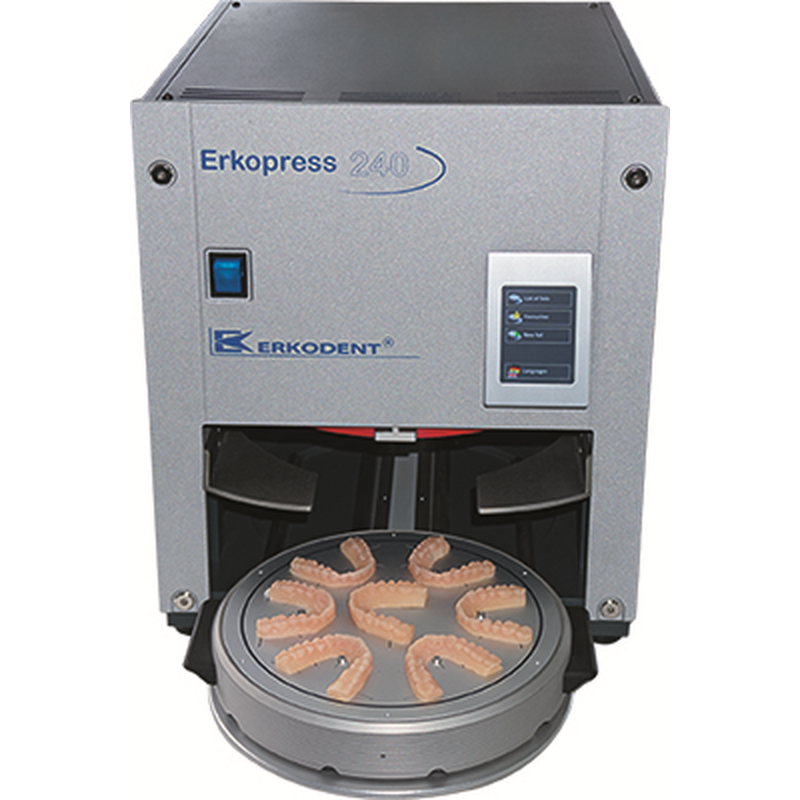

ERKODENT - Erkopress 240 Pressure Forming Unit (High Volume users)

Erkopress 240 179 000

Pressure forming device with automated thermoforming process for up to 6 models with base and for up to 9 models without base, to connect with the existing compressed air system.

• Program the machine
• Arrange models
• Forming in process
• The unit works with an overpressure of up to 4.5 bar. It thus meets the desire of many users to thermoform 3d print models with overpressure.
• The Erkopress 240 enables the efficient production of correction splints/aligners or other series or larger numbers of splints.
• The thermoforming process is completely automated, the available plates are stored in the program and can be called up in the display with the respective parameters.
• Only thermoforming plates with a diameter of 240 mm can be processed.

Delivered complete, with additional model plate, test foils

Technical data:

• height 40 cm/width 34.5 cm/depth 59 cm • weight: 47 kg
• operating pressure: 4.5 bar, required mains system pressure > 6 bar
• operating voltage: ~220 - 240 (100, 110 - 120) volt, 50 - 60 hertz
• wattage: max. 1100 watt
• noise level: < 80 dB(A)
• foil dimensions: ø 240 mm, thickness 0 - 2.0 mm

Made in Germany
